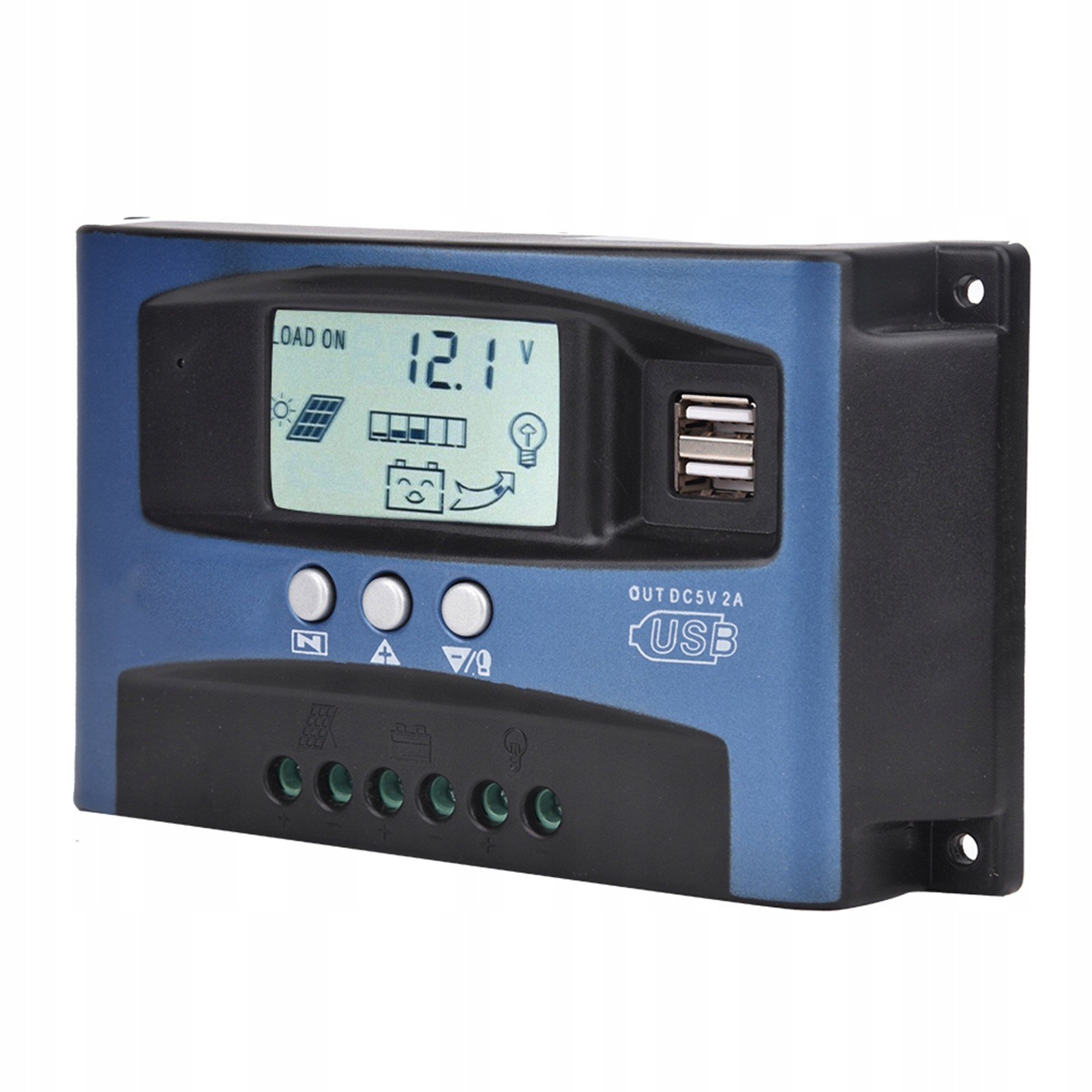

Nabíjací solárny regulátor 40A 12/221 V regulátor

Function: 1. Always keep the battery energized. 2. Avoid overcharging the battery. 3. Prevent the battery from over-discharging. 4. Prevent the battery from being reverse charged to the solar panels during nights. 5. Battery reverse polarity protection. 6. Protection against reverse polarity of solar panels. 7. When the battery voltage is low, the controller will cut the load off the system automatically. If the battery voltage returns to normal and the load resumes operation. 8. Protection against lightning. 9. According to the battery voltage class, the controller can automatically set the charging voltage, charging voltage, load restoring voltage. (The parameter is below 25 ℃ by default, locked by the processor routine, can't be adjusted. ) 10. The controller automatically compensates for the charging voltage temperature depending on changes in the ambient temperature.

Specification: Condition: 100% Brand New! Material: ABS + ROHS Model: YCX-003 System voltage: 12 / 24V adaptive Solar panel voltage: 12V, 18V, 24V, 36V Floating charge voltage: 13.7V (default, adjustable) Discharge cut-off voltage: 10.7V (default, adjustable) Discharge recovery voltage: 12.6V (default, adjustable) Standby current: <10mA USB output: 5V / 2A maximum Rated voltage : 12/24 V Optional rated current: 40A Maximum PV voltage: 50V Maximum PV input power: 40A: 520W (12V) / 1040W (24V) Size: Approx. 170 x 92 x 45 mm / 6.7 x 3.6 x 1.8 inch Weight: Approx. 318g Package List: 1 x Solar panel battery charge controller 1 x User Manual

Characteristics: 1. Industrial-grade main chip, 16 AD sampling accuracy, temperature, charging current, accurate real-time display of discharge current, power generation at a glance. 2. Auto focus MPPT tracking charging, high charging efficiency, continuous detection while charging, bi-directional focus tracking. 3. Large LCD screen, adjustable charging and discharging parameters. Regulation of charge and discharge throughout the UItra, you can charge any battery. When the output is off, the time can be adjusted, more convenient. 4. Full three-phase charging management, protect the battery effectively, the battery is more durable. 5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection protection, after eliminating the fault, the controller automatically recover, no damage to the device. 6. Bi-directional MoS tube anti-return circuit, high-power charging mode, ultra-low heat.
