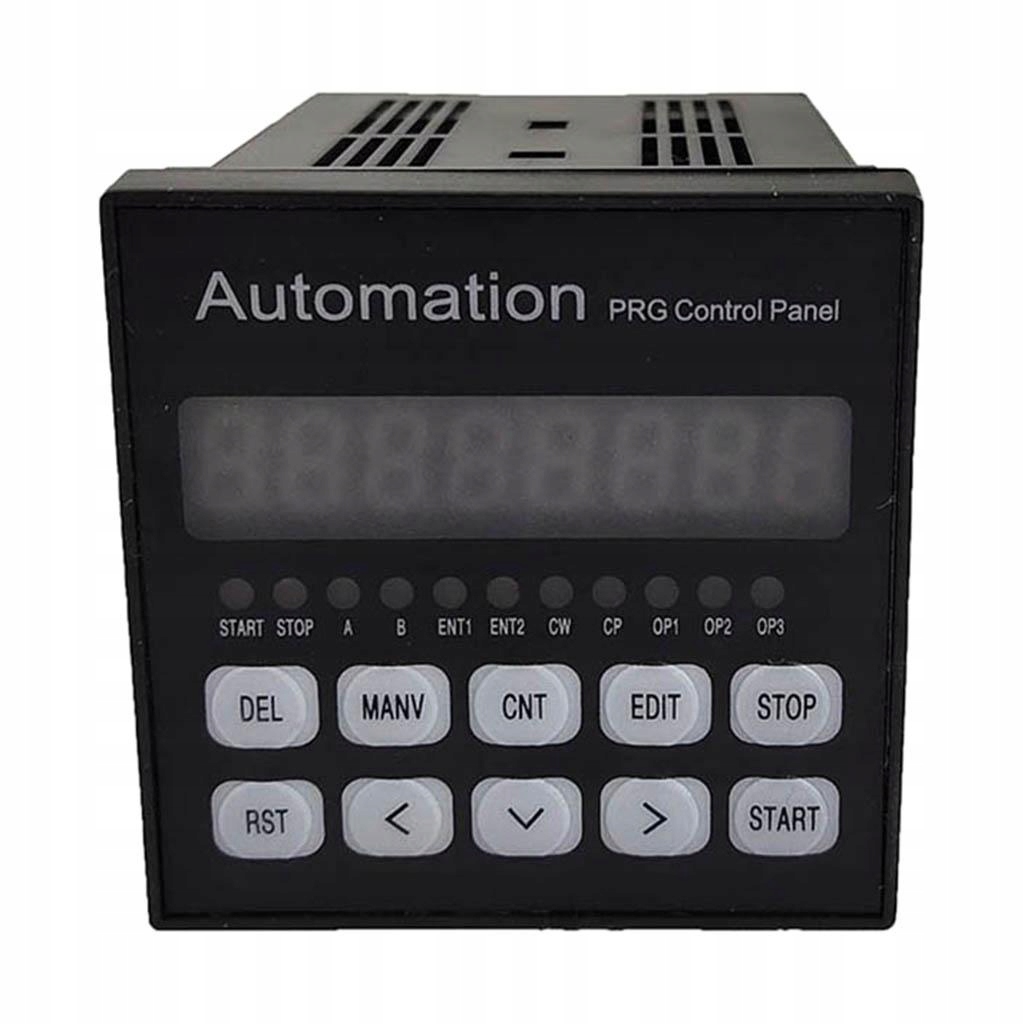

KH-01 Prepravný radič s programovateľným motorom

Single-axis Servo Stepper Motor Motion Controller Programmable AC 220V 5V

Description:

Instruction features: arbitrary programmable (can achieve a variety of complex operations: positioning control and non-positioning control).

Multiple working status including automatic running state, manual running state, program editing state, parameter setting status.

8-bit digital tube display, manual/ automatic state display, run/ stop state display, step/ count value/ program display, edit program, parameter display, input/ output state display, CP pulse and direction display.

Maximum output frequency: 40KHz (especially suitable for controlling subdivision drive).

High output frequency resolution of which is as accurate as 1Hz.

Specification:

Number of programming: 99;

Input points: 6 (optical isolation);

Output points: 3 (optical isolation);

One continuous displacement range: -7999999～7999999;

Lifting speed curve: 2 (optimized);

Automatic running function: editable, control the start and stop of automatic running through the panel buttons and the level applied to the terminal;

Manual operation function: the position can be adjusted;

Parameter setting function: can set the take-off frequency, lifting speed curve, backlash, manual length, manual speed, interrupt jump line number and zero return speed;

Program editing function: You can insert and delete the program that can be modified. It has the function of judging the jump line number, data zeroing, the number of statements is too long and ultra-short;

Zero return function: automatically return to zero point in both directions;

Programming instructions: 14;

External operation function: By parameter setting and programming, an external interrupt operation can be performed by adding a switch on the (limit A) A operation and the (limit B) B operation terminal;

Power supply: AC220V

Package Includes:

1 x Stepper Motor Controller
