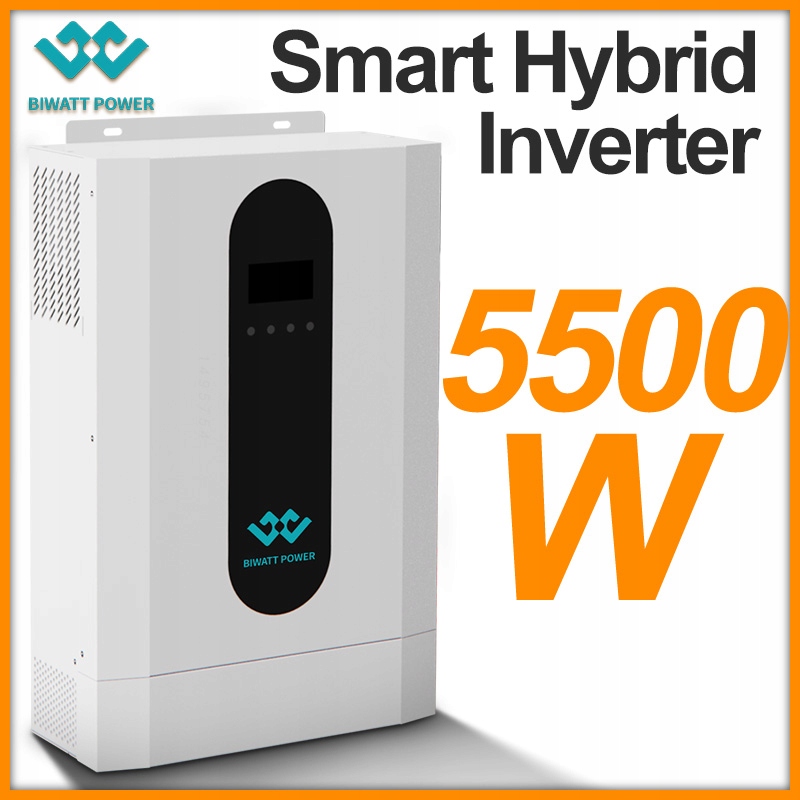

Smart hybrid inverter

High Safety and Reliability

• End-side and cloud integrated intelligent BMS, multi-protection battery, to ensure the safety of each family
• All-in-one design high protection level PACK module
• Automotive-grade A-grade battery cells, high functional safety

Highly Efficient

• On and off-grid, AC coupling, DC intelligent coupling integrated design, to meet the different needs of newly installed and existing PV distribution and storage
• Energy storage and inverter all-in-one design, easy and convenient system installation

Smart Energy Cloud

• Smart APP, real-time access to household electricity consumption, power generation, electricity consumption at a glance
• Intelligent energy management cloud platform, optimal home energy use, no fear of power outages

High Cycle Life

• High energy density lithium iron phosphate cell, 6500 times super high cycle life
• Intelligent BMS with active equalization function to effectively protect and extend battery life

Proactive Safety

AI-enabled overload, over temperature and output short circuit protection

Cold start protection

Highly Efficient

Parallel and off-grid, bi-directional inverter integrated design

Parallel machine can form three-phase output

MPPT efficiency up to 99%

Flexibility and Smart

DSP design, full digital control

Support cloud platform and cell phone APP online monitoring

Multi-way status monitoring and remote fault diagnosis

Technical Specification

PNH-5-01

Input（AC）

• AC input power: 5500 W
• AC input voltage range: 170 V ~ 280 V
• AC start voltage: 120 V ~ 140 V
• Auto-restart voltage: 180 V
• Nominal input current: 23.9 A
• Max. input current: 40 A
• Voltage frequency: 50 Hz / 60 Hz

Input（PV）

• Max. DC power: 6500 W
• Max. DC input voltage1: 500 V
• MPPT voltage range2: 120 V ~ 450 V
• Start voltage: 116 V / 150 V
• Nominal input voltage: 360 V
• Max. MPPT input current: 20 A
• Max. short-circuit current: 25 A
• Number of MPPT input: 1
• MPPT efficiency: 99%

Input（Battery）

• Nominal DC voltage: 51.2 V
• Operating voltage range: 40 V ~ 63 V
• Max. operating current: 110 A
• AC Max. charge current: 60 A
• PV Max. charge current: 80 A

Output（Utility mode ）

• Grid adaptation: Single Phase
• Nominal output power: 5500 W
• Nominal output voltage: 230 Vac
• Output voltage frequency: 47.5 Hz ~ 51.4 Hz / 59.3 Hz ~ 60.5 Hz
• Nominal output current: 23.9 A
• Off-grid power output: YES

Output（Battery mode )

• Apparent output power: 5500 VA
• Nominal output power: 230 Vac
• Voltage frequency: 50 Hz / 60 Hz
• Efficiency: 97%

Protection & Features

• Input DC switch: YES
• Anti-isolation protection: YES
• Input reversal protection: YES
• Insulation impedance detection: YES
• DC surge protection: YES，Equivalent to EN/IEC 61643-11
• AC surge protection: YES，Equivalent to EN/IEC 61643-11
• Overvoltage protection: YES
• Undervoltage protection: YES
• Overcurrent protection: YES
• Short circuit protection: YES
• Over temperature protection: YES

General parameters

• Working temperature: -10°C ~ + 40°C (14℉ ~ 104℉)
• Storage temperature: -40°C ~ + 70°C (-40℉ ~ 158℉)
• Operating humidity: 0% RH ~  90% RH
• Max. operating altitude: 4,000 m (13,123ft.) (Derating above 2,000 m)
• Cooling mode: Forced air cooling
• Display: LCD ；WIFI + APP
• Communication: RS232 / RS485 / CAN2.0
• Weight: 11 kg ( 24.3 lb)
• Dimension（W x H x D）: 350 x 450 x 125 mm (13.8 x 17.7 x 4.9 in)
• IP rating of enclosure: IP21
• Certification
• Warranty: 10 years (free) , 15 years (paid)
• Security: CCC, CE, NSR
• *1 The maximum input voltage is the upper DC voltage limit of the inverter. Any higher input DC voltage may damage the inverter.
• *2 Any DC input voltage outside the operating voltage range of the inverter may cause the inverter to operate abnormally
• Avalable in parallell or not: NO
